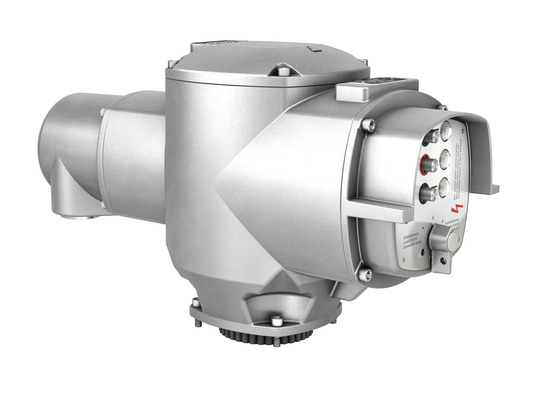

Wuzhong Multi Turn Multi Port Control Valve ATM with Auma Actuator for Power Plant Water System

1
MOQ
USD 2180-2450 per set
Prix
Wuzhong Multi Turn Multi Port Control Valve ATM with Auma Actuator for Power Plant Water System
traits Galerie Description de produit Évaluations et avis Demandez une citation
traits
Caractéristiques
Informations de base
Lieu d'origine: CHINE
Nom de marque: WUZHONG
Numéro de modèle: ATM
Conditions de paiement et expédition
Détails d'emballage: emballage en carton/caisse en bois
Délai de livraison: 6-8 semaines
Conditions de paiement: T/T
Capacité d'approvisionnement: 800 ensembles par an
Description de produit
Wuzhong Multi Turn Multi Port Control Valve ATM with Auma Actuator for Power Plant Water System
Product Overview
The Wuzhong Multi Turn Multi Port Control Valve ATM is a high-precision industrial control valve specifically developed for power plant water system regulation. Equipped with Auma electric actuator, it features multi-turn operation and multi-port design, enabling flexible and accurate flow control in water supply, circulation, and drainage systems of power plants. With reliable performance, durable structure and easy operation, it ensures stable and efficient operation of power plant water systems, meeting the strict requirements of industrial process control.
Features
  • Multi turn operation design for precise flow and pressure regulation in power plant water systems
  • Equipped with Auma electric actuator for stable positioning, fast response and reliable control
  • Multi port structure enables flexible media distribution and diversion, adapting to complex water system layouts
  • High-quality valve body material, corrosion-resistant and anti-scaling, suitable for power plant water media
  • Excellent sealing performance, low leakage rate, ensuring safe operation of water circulation systems
  • Strong structural rigidity, resistant to pipeline vibration and water hammer impact in power plant working conditions
  • Easy installation, debugging and maintenance, reducing operational and maintenance costs
  • Complies with industrial standards for power plant equipment, compatible with standard control systems
Technical Specifications
  • Valve Model: Multi Turn Multi Port Control Valve ATM
  • Matching Actuator: Auma Electric Actuator
  • Operating Temperature Range: -40℃ to 425℃
  • Pressure Level: PN16, PN25, PN40, PN63
  • Control Mode: Electric Proportional Modulating Control
  • Connection Type: Flange Connection (GB, ANSI, DIN Standard)
  • Valve Body Material: WCB, CF8, CF8M, Alloy Steel (Optional)
  • Applicable Medium: Power Plant Feed Water, Circulating Water, Condensate Water
  • Flow Characteristic: Linear, Equal Percentage
  • Actuator Protection Level: IP67 (Standard), IP68 (Optional)
Applications
  • Power plant feed water system flow and pressure regulation
  • Thermal power plant circulating water system control
  • Power plant condensate water recovery and regulation
  • Power plant boiler water supply and drainage control
  • Industrial power station auxiliary water system regulation
  • Large-scale power plant water treatment process control
FAQ
  • Q: Is this valve specially designed for power plant water systems? A: Yes, it is optimized for power plant water media (feed water, circulating water, etc.) with anti-scaling and corrosion-resistant design.
  • Q: What is the advantage of the multi port design? A: The multi port structure allows flexible media distribution and diversion, adapting to the complex layout of power plant water pipelines.
  • Q: Is the Auma actuator easy to operate and maintain? A: Yes, the Auma electric actuator has a simple operation interface and easy debugging, with low maintenance requirements.
  • Q: Can the valve adapt to the working conditions of power plant high temperature water? A: Yes, it supports an operating temperature range of -40℃ to 425℃, fully adapting to high temperature water in power plants.
  • Q: Are customized specifications available for different power plant needs? A: Yes, we can customize valve caliber, material, pressure level and actuator configuration according to specific project requirements.
