Industrial Intelligent Electric Gate Valve Peckwomy PWMON Series Multi-turn Electric Valve Actuator Automatic Control

1
MOQ
US $1350.00 - 1750.00/ Set
Prix
Industrial Intelligent Electric Gate Valve Peckwomy PWMON Series Multi-turn Electric Valve Actuator Automatic Control
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Media: GAS
Torque range: 30 Nm-3000 Nm
Power supply: 3ph/380V/50Hz (other voltage on request)
Paint: silver-grey
Temperature range: -30°C to +70°C
Informations de base
Place of Origin: China
Nom de marque: Peckwomy
Model Number: PWMON Series
Conditions de paiement et expédition
Delivery Time: 60-90 working days
Payment Terms: T/T
Description de produit
Industrial Intelligent Electric Gate Valve Peckwomy PWMON Series Multi-turn Electric Valve Actuator Automatic Control
Product Attributes
Attribute Value
Media GAS
Torque range 30 Nm-3000 Nm
Power supply 3ph/380V/50Hz (other voltage on request)
Paint silver-grey
Temperature range -30°C to +70°C
Product Overview

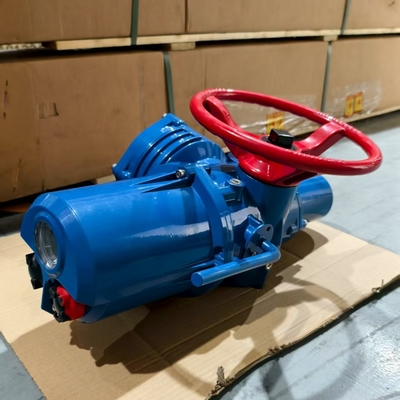

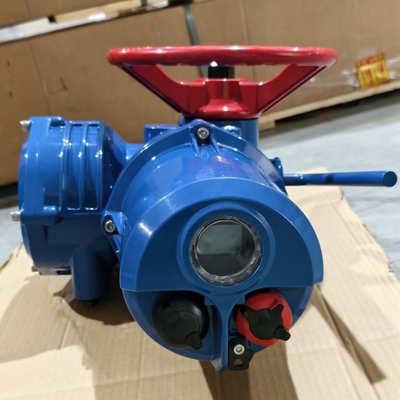

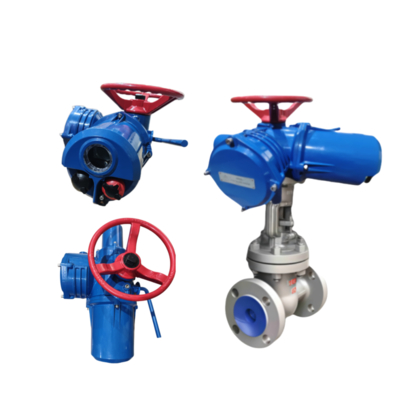

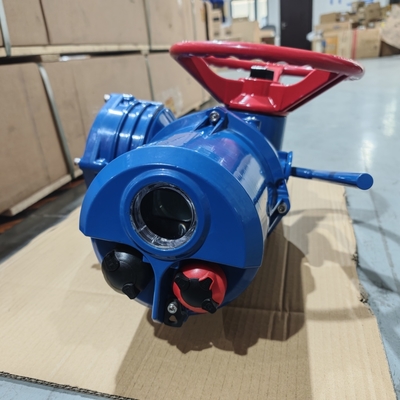

The Peckwomy PWMON Series is an advanced multi-turn electric valve actuator designed for precise automatic control of industrial gate valves. Combining intelligent automation with robust engineering, it ensures reliable operation in critical applications such as water treatment, oil & gas, and power generation.

Key Features
  • Intelligent Control: Supports Modbus RTU/TCP and HART protocols for seamless integration with SCADA systems.
  • High Precision: ±1% torque accuracy with adjustable position feedback.
  • Multi-Turn Design: Suitable for gate valves requiring 20+ rotations.
  • Durability: IP68-rated enclosure for harsh environments.
  • Safety: Emergency stop, overload protection, and manual override.
  • Energy Efficiency: Low power consumption (≤15W in standby mode).
Technical Parameters
Parameter Value
Model PWMON-Series
Voltage 24V AC/DC, 110-240V AC
Torque Range 50-2,000 Nm (customizable)
Control Signal 4-20mA, 0-10V, Digital I/O
Protection Class IP68 / NEMA 6P
Operating Temperature -30°C to +80°C
Communication Modbus RTU/TCP, HART
Material Aluminum Alloy (Corrosion-Resistant Coating)
Applications
  • Water supply and wastewater treatment plants
  • Oil & gas pipeline control systems
  • Thermal power station boiler feedwater valves
  • Chemical processing industry flow regulation
  • HVAC system balancing in commercial buildings
Produit Tag:

valve de pincement électrique

valve hydraulique de contrôle de la pression

Soupape de commande hydraulique électrique
