Positioner Product Introduction
Product Overview

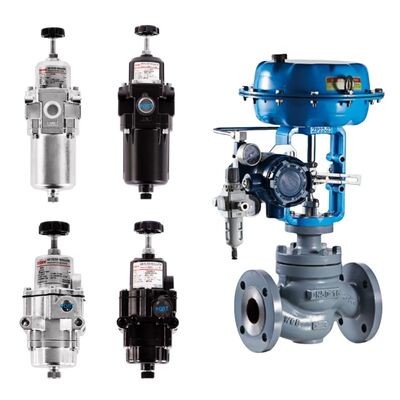

This product combination includes Rotork YT200 YT205 Filter Regulators and Rotork YT1000 Valve Positioners, designed to work seamlessly together for industrial process control. The YT200 YT205 filter regulators provide clean, stable compressed air by filtering impurities and regulating pressure, while the YT1000 valve positioner ensures precise valve positioning via electro-pneumatic signal conversion. Together, they enhance operational efficiency, reliability, and stability for oil, gas, water treatment, chemical, power, and pharmaceutical industries.
Features

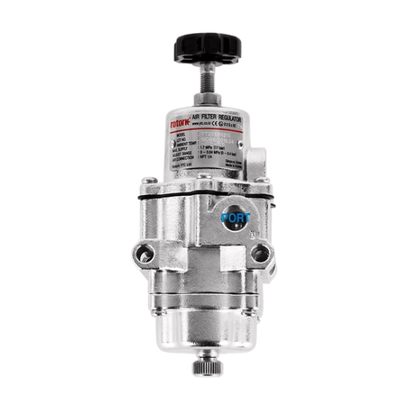

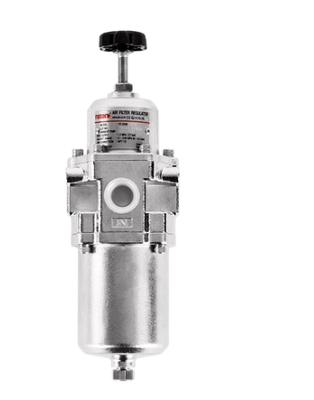

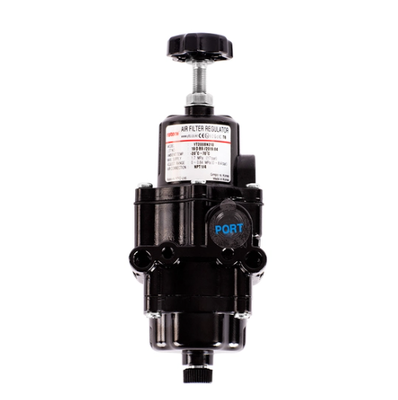

Rotork YT200 YT205 Filter Regulator Features
Efficient filtration of moisture, dust, and oil impurities from compressed air
High-precision pressure regulation for stable air supply to pneumatic systems
Compact and lightweight design, easy to install and integrate with pipelines
Durable aluminum alloy construction, corrosion-resistant for long service life
Low air consumption, energy-saving and cost-effective for continuous operation
Rotork YT1000 Valve Positioner Features
High positioning accuracy (±0.5% of full scale) for precise valve control
Converts 4-20mA DC electrical signals to pneumatic signals for actuator drive
IP66 protection rating, dustproof and waterproof for harsh industrial environments
Compatible with both linear and rotary pneumatic actuators for versatile use
Easy calibration and installation, reducing on-site debugging time
Technical Specifications
Rotork YT200 YT205 Filter Regulator
Brand: Rotork
Model: YT200, YT205
Type: Pneumatic Filter Regulator
Supply Pressure: 0.14-0.7 MPa
Output Pressure: Adjustable (0.01-0.8 MPa)
Protection Level: IP65/IP66
Material: Aluminum Alloy
Drainage Mode: Manual / Automatic (optional)
Operating Temperature: -20°C to +70°C
Applicable Medium: Compressed Air
Rotork YT1000 Valve Positioner
Brand: Rotork
Model: YT1000
Type: Electro-Pneumatic Valve Positioner
Input Signal: 4-20mA DC
Supply Pressure: 0.14-0.7 MPa
Positioning Accuracy: ±0.5% of full scale
Protection Level: IP66
Housing Material: Die-Cast Aluminum Alloy
Operating Temperature: -20°C to +70°C
Mounting Type: Direct Mount on Pneumatic Actuators
Applications
The Rotork YT200 YT205 Filter Regulators and YT1000 Valve Positioners are widely applied in various industrial fields that require precise air pressure control and valve positioning, including:
Oil and gas industry: Pipeline systems, wellhead control, and refinery processes
Water treatment industry: Water supply, sewage treatment, and pipeline valve control
Chemical industry: Reaction vessels, chemical pipelines, and process automation
Power industry: Thermal power plants, boiler systems, and steam valve regulation
Pharmaceutical industry: Clean production lines and precision control systems
General industrial automation: Pneumatic control circuits and valve actuator systems
FAQ
Q: What is the difference between YT200 and YT205 filter regulators?
A: They share core functions (filtration + pressure regulation); YT205 has larger flow capacity and optional automatic drainage, suitable for high-demand scenarios.
Q: Can the YT1000 positioner work with all pneumatic actuators?
A: Yes, it is compatible with both linear (stroke) and rotary (0-90°) pneumatic actuators, adapting to most industrial valves.
Q: How often should the YT200/YT205 filter element be replaced?
A: Replacement depends on working environment; regular inspection (1-3 months) is recommended for optimal performance.
Q: Is calibration required for the YT1000 positioner?
A: Yes, simple on-site calibration is needed after installation, with clear instructions and no professional tools required.
Q: Are these products suitable for harsh industrial environments?
A: Yes, both have IP66 protection (YT200/YT205 optional IP65), resistant to dust, water, and extreme temperatures.
