Product Introduction

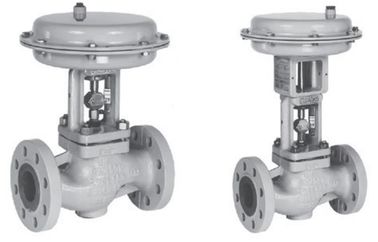

Type 3244 Three-way Valve or Type 3241 Globe Valve with Type 3374 Electric Actuator • Type 3241 Globe Valve, refer to Data Sheet u T 8015 • Type 3244 Three-way Valve, refer to Data Sheet u T 8026 The Type 3374 Electric Actuator is available in various versions (for details, refer to Data Sheet u T 8331): • With additional electrical equipment (limit contacts, resistance transmitter, positioner) Also available: – Electric control valves with other electric actuators, refer to Data Sheets u T 5874, u T 8340 and u T 8331 – Pneumatic actuators, refer to Data Sheet u T 8015 – Versions tested according to DIN EN 14597, refer to Data Sheet u T 5871 Installation The control valves can be installed in any desired position except with the actuator suspended downwards. The actuator is attached to the yoke with a fastening nut.
Specifications
|
Attachment
|
Pipe or wall mounting
|
| Mounting Position | Upright, condensate drainage downwards |
| Fast mm/s | 0.25 |
| Ambient temperature | -40° to + 60 |
| Application | Angle Valve, Global Valve |
|
Power supply |
230 V (+10/–15 %), 50 Hz
230 V (+10/–15 %), 60 Hz
24 V (+10/–15 %), 50 Hz
24 V (+10/–15 %), 60 Hz
|
|
Duty type
|
S1 - 100 % according to EN 60034-1
|
|
Degree of protection
|
IP 54 according to EN 60529,
IP 65 with cable glands (can be retrofitted) 1)
Suspended mounting not permitted
|
|
Signal pressure (output)
|
0 bar up to the capacity of the supply pressure · Can be limited to approx. 2.3 bar by software
|
|
Permissible ambient temperature
|
–20 to +80 °C
–25 to +80 °C with metal cable gland
The limits in the test certificates additionally apply for explosion-protected versions
|
|
Influences
|
Temperature: ≤0.15 %/10 K
Effect of vibration: ≤0.25 % up to 2000 Hz and 4 g according to IEC 770
Supply air: None
|
Detailed Image
