Attribute | Value |
---|---|
Type | Digital valve positioner |
Storage Temperature Limits | -58°F to 200°F (-50°C to 93°C) |
Relative Humidity | 10 to 90% non-condensing |
Supply Pressure Effect | 0.05% per psi |
Valve type | Ball valve, butterfly valve, Check valve, Gate valve, globe valve, Diaphragm valve |

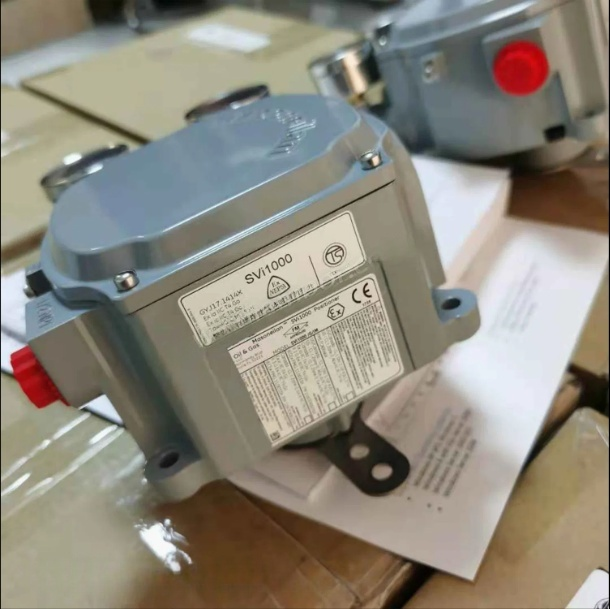

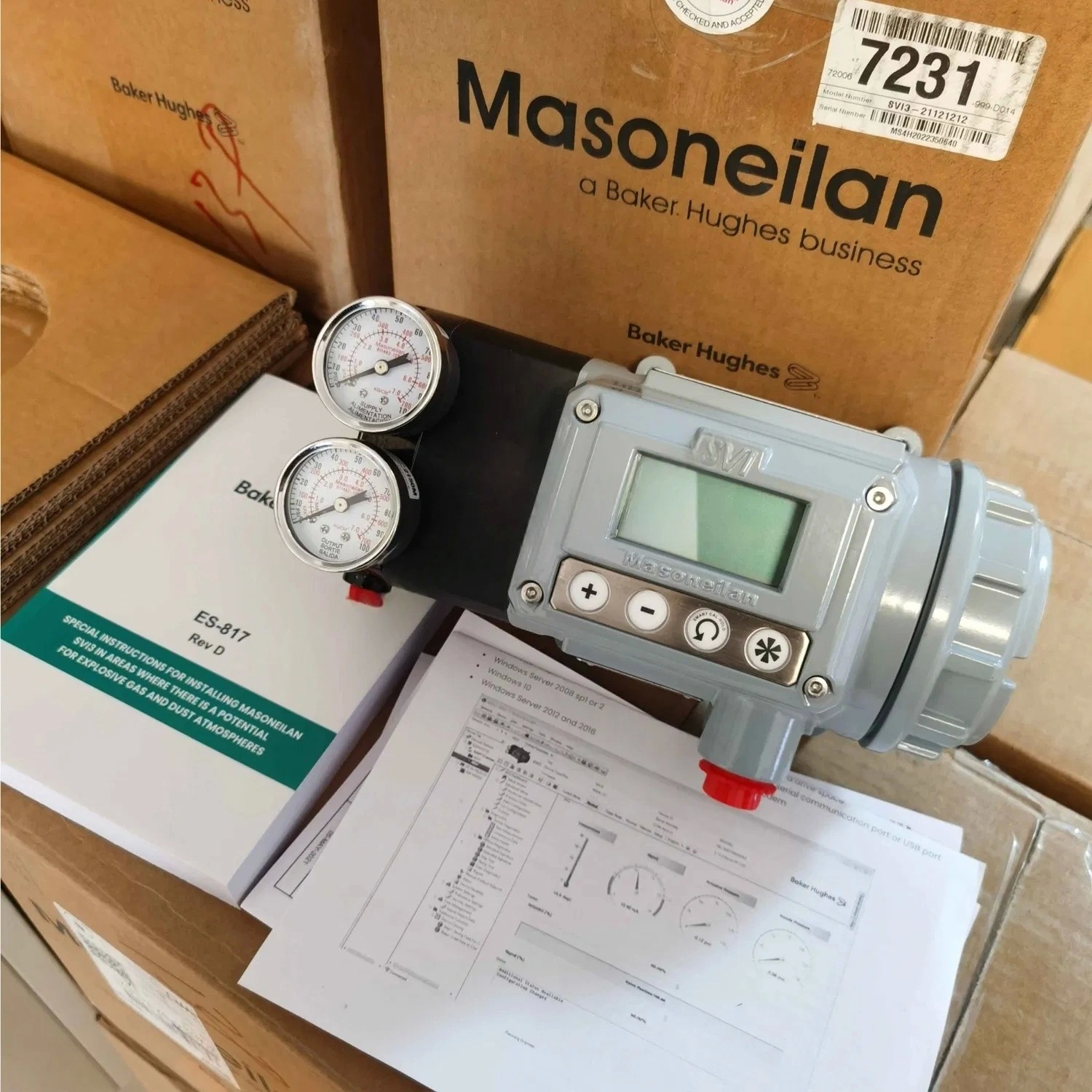

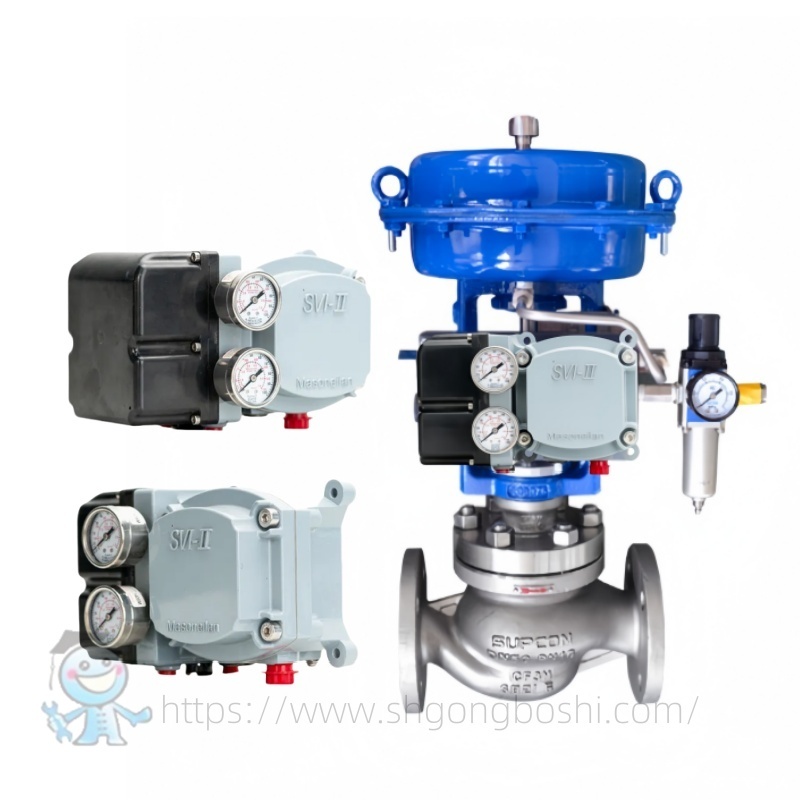

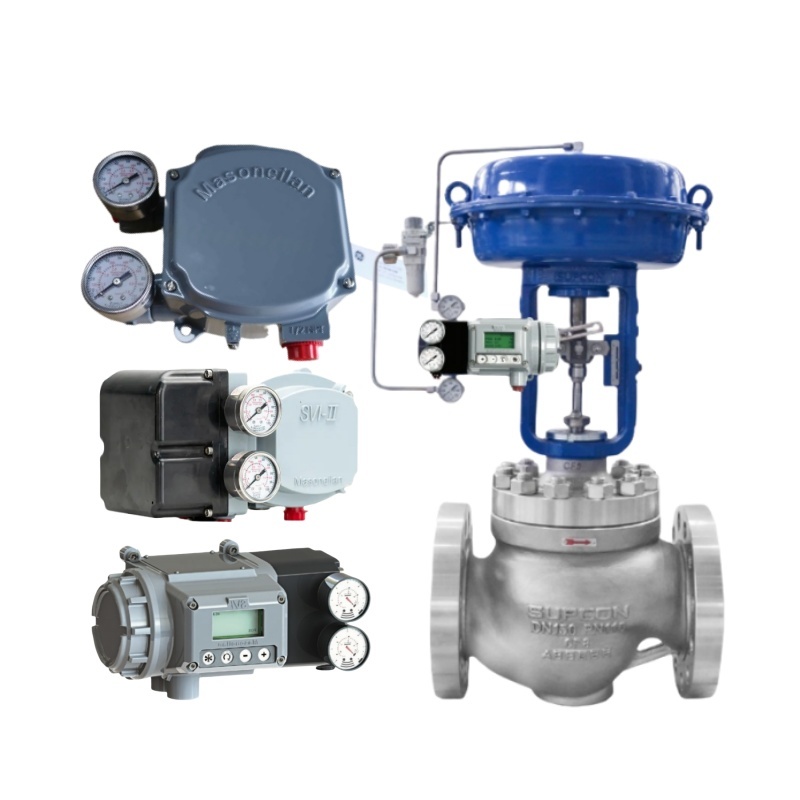

The Masoneilan SVI1000, SVI2, and SVI3 series represent cutting-edge intelligent valve positioners designed for precise control of pneumatic valves in industrial automation systems. These HART-compatible digital positioners enhance valve accuracy and reliability, supporting both single-acting and rotary/reciprocating valve configurations for demanding process control environments.
Parameter | SVI1000 | SVI3 |
---|---|---|
Communication | HART 5/7 | HART 7 |
Input Signal | 4-20mA | 4-20mA |
Accuracy | ±0.5% span | ±0.1% span |
Response Time | <1.5 seconds | <1.0 seconds |
Temperature Range | -30°C to +70°C | -40°C to +85°C |
Power Supply | Self-powered (4-20mA) | Self-powered (4-20mA) |
Air Consumption | 150 Nl/min (max) | 200 Nl/min (max) |
Weight | 1.8 kg | 2.5 kg |
Certification | ATEX, FM | ATEX, FM, IECEx, CSA |
Suitable for automated valve control in:
