Lieu d'origine: | LA CHINE |
---|---|
Nom de marque: | ABB |
Numéro de modèle: | IRB6700-300/2.7 |
Quantité de commande min: | 1 ensemble |
Prix: | US $48501 |
Détails d'emballage: | UNE robot de soudure de cueillette de grande de station d'ABB 6 de l'axe ABB IRB6700 6 d'axe de robo |
Délai de livraison: | 30-60 jours de travail |
Conditions de paiement: | L/C, T/T, Western Union |
Capacité d'approvisionnement: | 100 ensembles/mois |
NOM: | Portée de polissage 2700mm de robot et de charge utile 300Kg de soudure de cueillette d'Assemblée de | Application: | Assemblée polissant sélectionnant la soudure |
---|---|---|---|
Charge utile: | 300kg | Portée: | 2700mm |
Nombre de haches: | 6 | Matériel: | alliage d'aluminium |
Protection: | DST : IP67. | Montage: | Plancher, inversé |
Placez la répétabilité: | 0.10mm | Contrôleur: | IRC5 contrôleur monté par panneau simple du Cabinet IRC5 PMC |

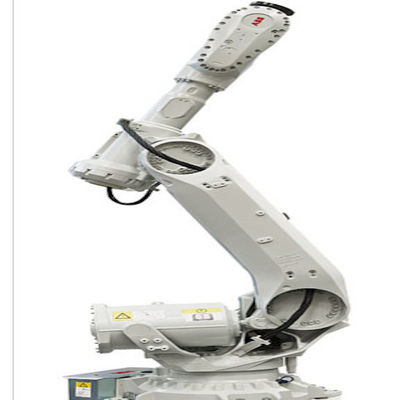

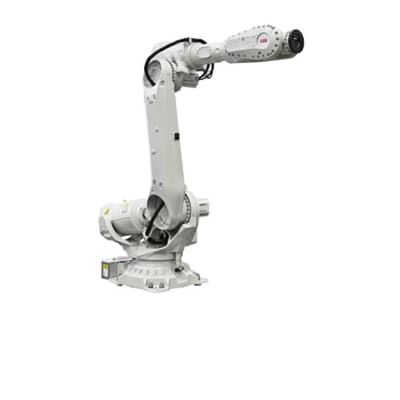

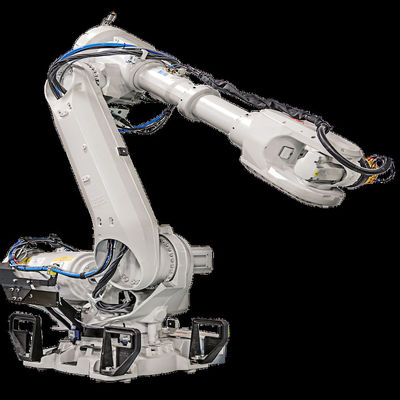

ABB IRB6700 6 Axis Industrial Robot Arm Assembly Polishing Picking Welding Robot and Payload 300Kg Reach 2700mm
Specification
Robot version | Reach(m) | Handling capacity(kg) | Center of gravity(kg) | Wrist torque(Nm) |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 200 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 155 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 150 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 300 | 300 | 1825 |
Without LeanID | ||||
IRB 6700-200/2.60 | 2.60 | 175 | 300 | 981 |
IRB 6700-155/2.85 | 2.85 | 140 | 300 | 927 |
IRB 6700-150/3.20 | 3.20 | 145 | 300 | 1135 |
IRB 6700-300/2.70 | 2.70 | 270 | 300 | 1825 |
Number of axes 6 | ||||
Protection | Std:IP67.Option:Foundry Plus 2 | |||
Mounting | Floor,inverted | |||
Controller |
IRC5 Single Cabinet/ IRC5 PMC Panel Mounted Controller |
Performance(according to ISO 9283)
Position repeatability |
Path repeatability |
|
IRB 6700-200/2.60 | 0.05mm | 0.10mm |
IRB 6700-155/2.85 | 0.10mm | 0.15mm |
IRB 6700-150/3.20 | 0.10mm | 0.15mm |
IRB 6700-300/2.70 | 0.10mm | 0.15mm |
Technical information
Electrical Connections | ||
Supply voltage | 200-600 V,50/60 Hz | |
Energy consumption | 2.8KW | |
Physical | ||
Robot base | 1004x720 mm | |
Robot weight(without Dress Pack) | ||
IRB 6700-200/2.60 | 1250kg | |
IRB 6700-155/2.85 | 1260kg | |
IRB 6700-150/3.20 | 1280kg | |
IRB 6700-300/2.70 | 1525kg |
