E3 Collaborative Painting Robot for Industry

E3 Collaborative Painting Robot for Industry

multi axis robotic arm

high precision robotic arm

Lieu d'origine:

Shanghai, Chine (continentale)

Nom de marque:

HAN'S

Contactez-nous

Demandez une citation
Détails de produit
Application:
ensemble, soudure, peinture
Garantie:
Un an
Service après-vente fourni:
Machine disponible pour entretenir des machines à l'étranger
tension:
100-240VAC
Utilisation:
Pour l'assemblée, collecte, soudure, meulage, peignant
Type:
E3
Charge utile:
3 kg
Poids:
17 KG
REACH:
590mm
Répétabilité:
± 0.05mm
Port:
Shanghai Port
Description de produit

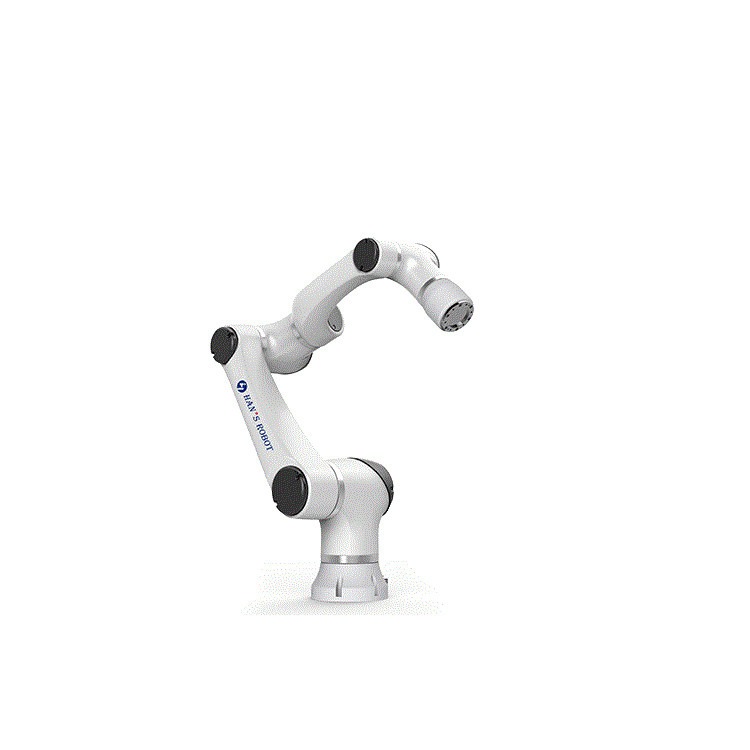

E3 Collaborative Painting  Robot for Industry 0



E3 Collaborative Painting Robot for Industry



Introduction

HAN'S Elfin robots are useful for integrated automatic production line, assembly, pickup,welding, grinding,painting,etc.

5kg in rated load with 23kg in weight

Modularity: All-in-one module of reducer, motor, encoder and drive

High accuracy: Repeatability up to ±0.05mm

Type E3Tool Speed1 m/sProgramminggraphical programming, remote process call
Weight17kg Repeatability±0.05(in normal condition)IP ClassIP54
Payload3kg Degree of FreedomCooperative Operation10 advanced configurations for safety
Reach590mm Control Box Size400*366*263mm Main Materialaluminum alloy
Power100w in typical cycle I/O Portdigital input/output:4, analog input:2 Working Temperature 0-50º
Joint Range ±360ºI/O Source24V 2A Power Input100-240VAC,50-60Hz
Joint Speed 90º/sCommunicationTCP/IP Cablecable to connect the control box:5m, cable to connect teach pendant:5m

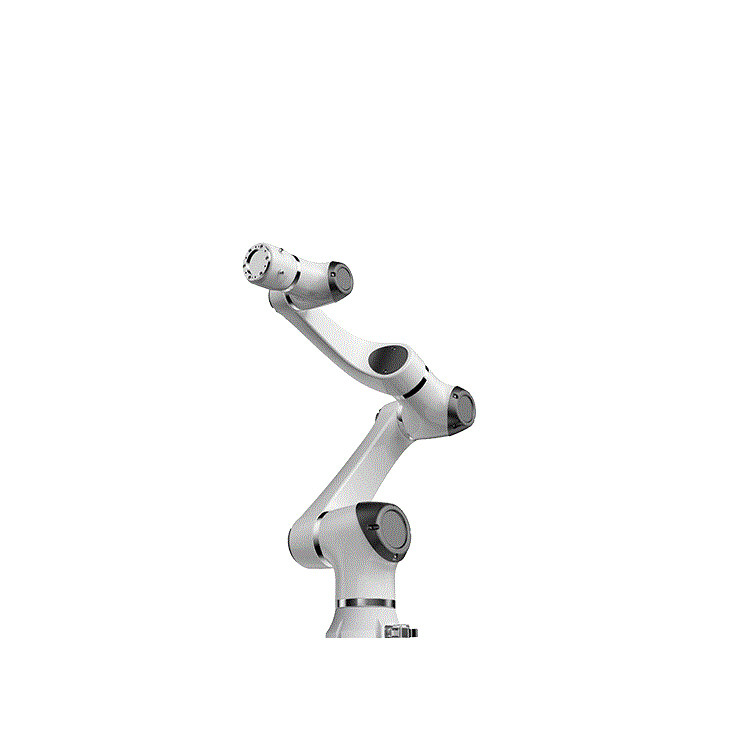

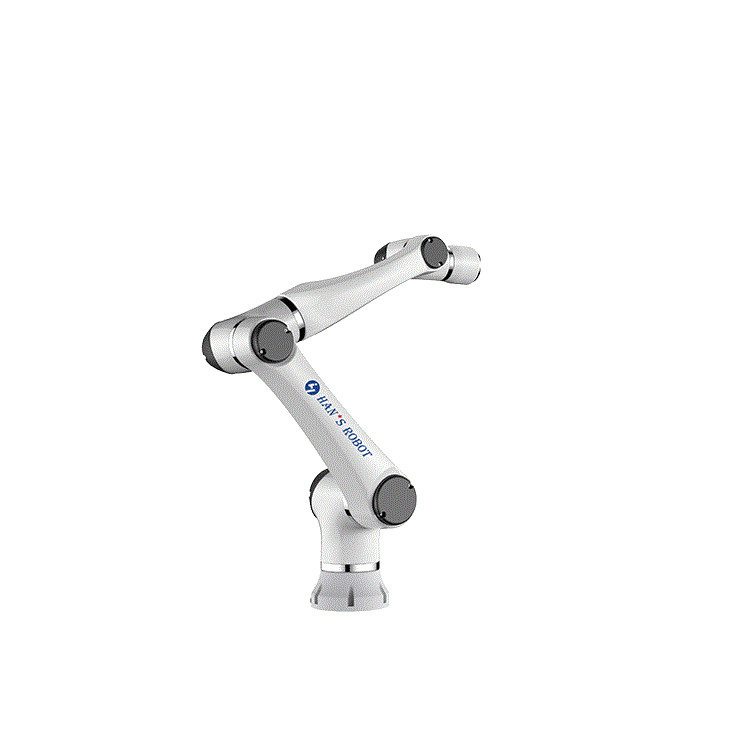

E3 Collaborative Painting  Robot for Industry 1E3 Collaborative Painting  Robot for Industry 2E3 Collaborative Painting  Robot for Industry 3
